Master Panels


All systems start with a master panel.

All NX-M Series panels may hold combinations of other relay types, contact inputs, motor controllers, dimmers or other components.

Include any combination of components, up to the panel size maximum spaces (x-points).


Click this icon in chart
to view specifications

Item Model No. Description Specs

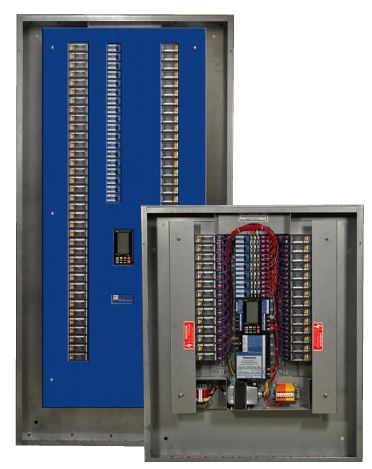

NX-M Series Panels  Master Panel Series Collection

The NX-M Master Panel Series Collection of Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 1-72 relays may be used as a base panel for larger installations.

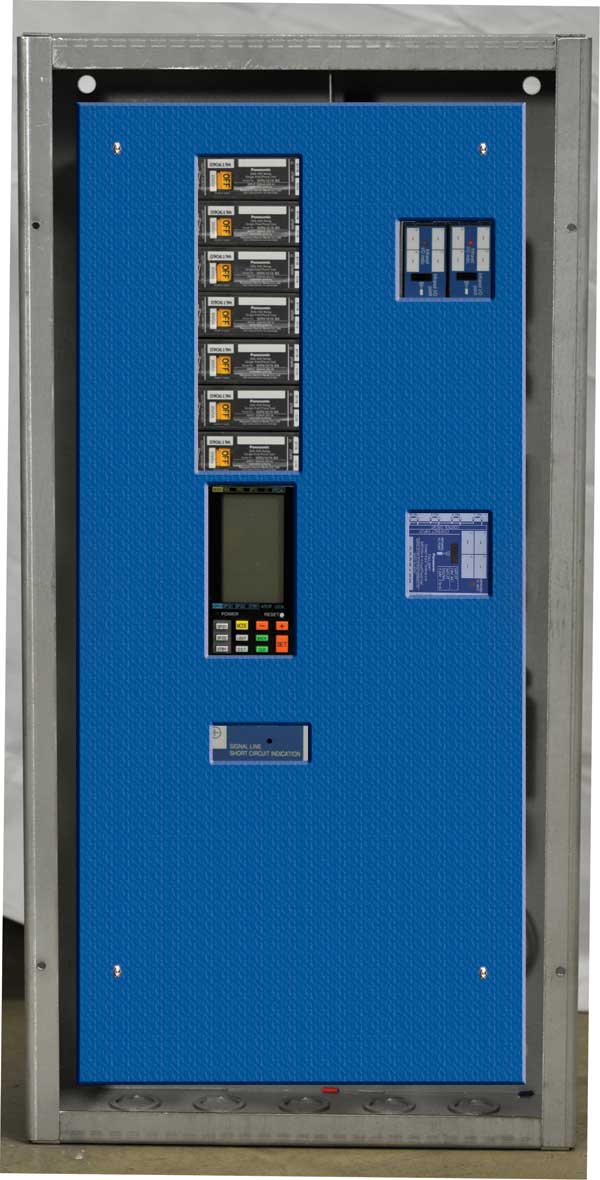

NX-M_700  Master Panel (7 Relays)

Master Panel (7 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 1-7 relays may be used as a base panel for larger installations.


NX-M1600  Master Panel (16 Relays)

Master Panel (16 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-16 relays may be used as a base panel for larger installations.


NX-M3200  Master Panel (32 Relays)

Master Panel (32 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-32 relays may be used as a base panel for larger installations.


NX-M4800  Master Panel (48 Relays)

Master Panel (48 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-48 relays may be used as a base panel for larger installations.


NX-M7200  Master Panel (72 Relays)

Master Panel (72 Relays) Pre-wired, pre-programmed, ready-to-install single panel lighting control solution with 7-72 relays may be used as a base panel for larger installations.
