Install Mini panels anywhere in the building to decentralize the system and minimize wiring. NX-Mini 10/12 Series panels are easily customized to include the required components.
NexLight builds panels that fit specific building requirements. Include any combination of components, up to the panel size maximum spaces (x-points).
|Click this icon in chart |
to view specifications
||Micro Control Panels
NX-Mini panels distribute lighting circuits closer to the load. Providing flexible system architecture for easier installation. Available in two sizes, the NX-Mini12 has 8 strap (spaces) and allows for a power transformer. The NX-Mini10 has 7 straps (spaces) and NO power transformer. Pre-wired, preprogrammed, ready-to-install Mini panels may house a variety of different products; Relays, Contact Inputs, Dimmers, Motor Controllers and more. Panels, switches and sensors connect together using #16 gauge 2-wire cable in topology-free sequence.

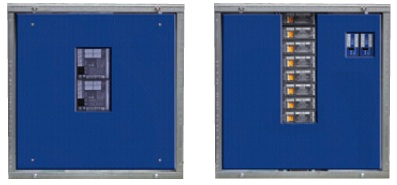

||10"x10" Mini Remote Panel
Enclosure used for remote mounted unpowered components needing only a 2-wire connection, Like the 6 Amp (4) relay, or the 800W dimmer module.This box has seven spaces (x-points) available. No Transformer power available. If more power is needed, use the 12x12” mini panel.
||12"x12" Mini Remote Panel
NexLight's remote panel provides almost limitless possible
configurations. Remote mount any NexLight component closer to its load
to reduce labor and material costs. No more over stuffed electrical
rooms. Create a complete system using only these boxes for maximum
benefit. Built to order. The 12x12 remote panel secures a maximum 8 straps (X-points), in addition to the transformer. Add any combination of needed components and locate the panel close to the loads and simply connect the Nexlight 2-Wire bus to the panel, making installation fast and cost effective.
