Daylight

landing_Sensors_Daylight.jpgThe Ceiling Mounted Daylight Sensor detects ambient daylight.

It can switch up to two independent zones with four steps each.

May be used for switched and dimmed loads on the NexLight system.

Only requires connection to the two-wire bus, no power packs required.




Click this icon in chart
to view specifications

Item Model No. Description Specs

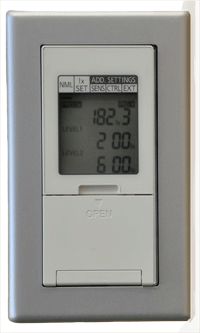

WRT3655  Ladder-less Daylight Sensor



The ladderless daylight sensor provides Title 24 compliant Automatic Daylight Harvesting Controls. By automatically reducing the light level of lighting in the controlled area when daylight alone achieves the design light level. Ladderless monitoring and control is achieved through the use of the setting unit.




WRT3657  Daylight Sensor

Ceiling mounted Daylight Sensor detects ambient daylight. May be used for switched and dimmed loads on the NexLight system. Only requires connection to the two-wire bus, no power pack necessary. Use one daylight sensor per lighting zone, or if applicable use 4 sensors to provide a global daylight sensor to monitor and adjust each of the four (N, E, S & W) facing sides of a building. Use one sensor per side to accomplish.
