Dimmers


Click this icon in chart
to view specifications

Item Model No. Description Specs

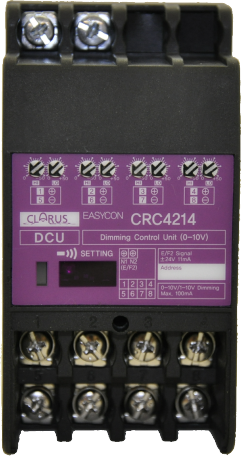

CRC4214  0-10V Dimmer Unit (4 Channel)

A 2-wire networked device which is housed in a panel and connects on the NexLight 2-Wire bus for control and feedback of dimmer levels. The CRC4214 has 4 independently controlled outputs, each with individual High and Low trim settings. Dimmer unit can be installed in distributed panels near lighitng loads to reduce wiring runs. Requires 2 mounting spaces and only the 2-Wire databus wires to operate.

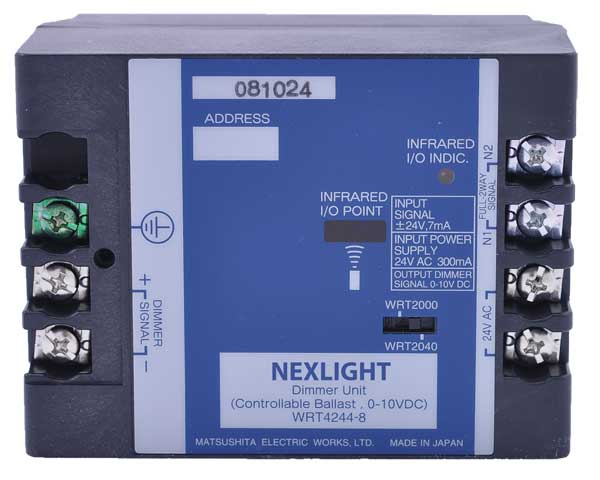

WRT4244  Dimmer, Fluorescent, 0-10V DC Analog

The WRT4244; 0 to 10 volt DC Fluorescent dimming module provides a 0 to 10 volt DC signal from the NexLight control system to control up to 50 third-party 0 to 10 volt DC fluorescent ballasts. For on/off control a NexLight control relay should be used on the line voltage feed to the ballasts.

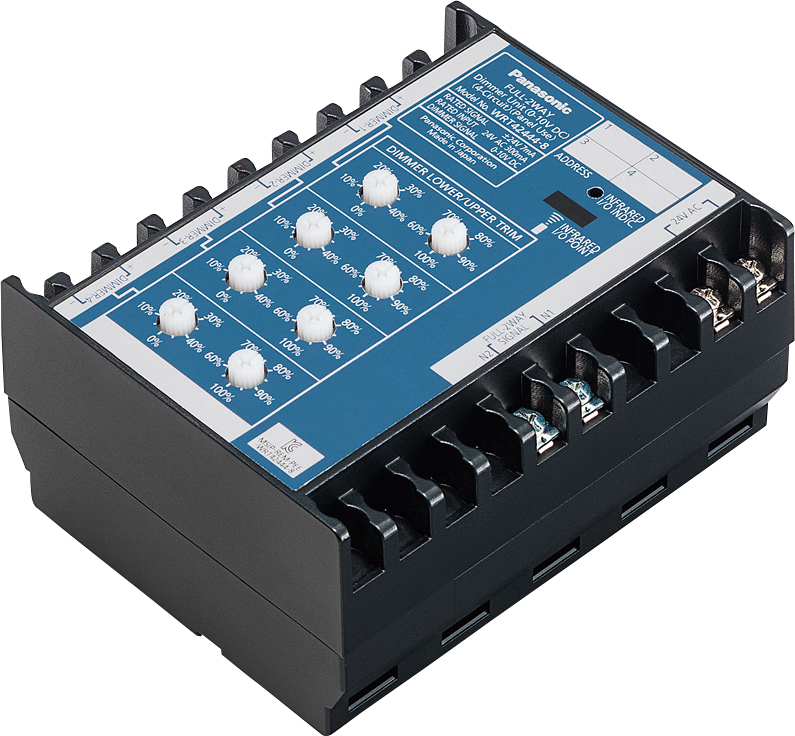

WRT42444-8  0-10V Dimmer (4) Channel

A 2-wire networked device which is housed in a panel and connects on the NexLight 2-Wire bus for control and feedback of dimmer levels. The WRT42444-8 has 4 independently controlled outputs, each with individual High and Low trim settings. Dimmer unit can be installed in distributed panels near lighitng loads to reduce wiring runs.


WRT43415K-814  Dimmer, Incandescent, 1500 watts, 120VAC

The WRT43415K-814 1500 watt 120VAC line voltage incandescent dimmer allows dimming of up to 1500 watts of line voltage incandescent lamps. In conjunction with NexLight's WRT2040-89 Transmission unit it allows fade rate, group dimming, and provides positive on/off as well as level status at any and all operator switch locations.


WRT4348K-814  Dimmer, Incandescent, 800 watts, 120VAC

The WRT4348K-814 800 watt 120VAC line voltage incandescent dimmer allows dimming of up to 800 watts of line voltage incandescent lamps. In conjuntion with NexLight's WRT2040-89 Transmission unit it allows fade rate, group dimming, and provides positive on/off as well as level status at any and all operator switch locations.
