All Other Cut Sheets


Click this icon in chart
to view specifications

Item Model No. Description Specs
209203-TH  Thermostat for Panel

Thermostat is designed to monitor and regulate air temperature in switch-gear enclosures when set up to operate with heaters, fans, filter ventilators, heat exchangers, and/or signal transmitters. When an enclosure reaches the predetermined set point, temperature contacts in the thermostat are activated and the fan or heater begins to operate (contacts close on temperature rise).


DT-55  Telephone Access / Control and Status Monitoring System

The DT-55 telephone access remote control and status monitoring system answers a phone line, accepts a user access, then allows for remote control of up to ten indivual or groups of relays and monitors up to ten external switch contacts or logic levels. The DT-55 is simple to understand, simple to install and secure and effective.

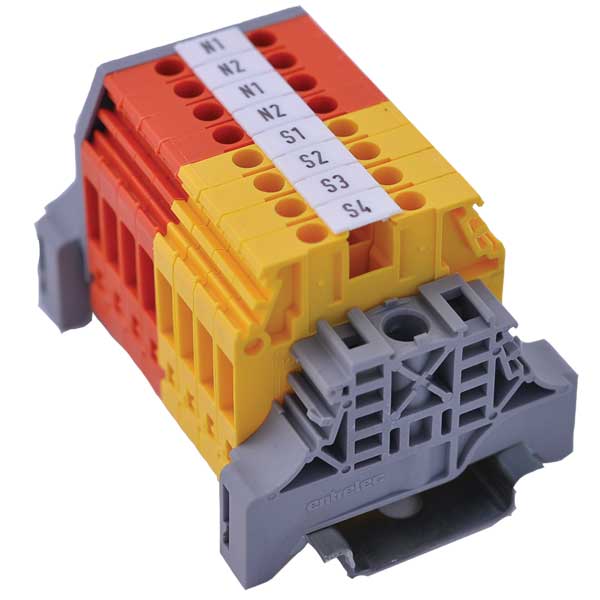

TB2-6-8  Nexlight Terminal Block

Provides contractors with a flexible and easy way to link panels, connect power and other auxiliary devices. Standard in 16 space panels and up.


TR50VA004  Multi-voltage Transformer

Accepts voltage ranges from 120-480VAC, stepped down to 24VAC. Also includes an integral breaker on the output side. Standard NexLight equipment.

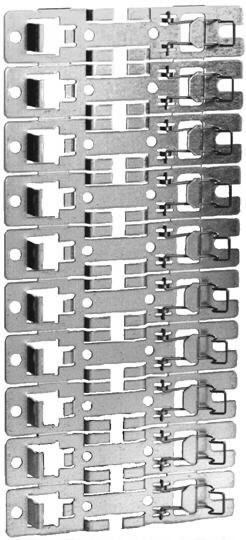

WR9910  Panel Mounting Straps

Straps are mounted in the back of the panel and the Nexlight components snap into them for an easy install.
