Ceiling Sensors

Click here to buy, learn, and browse all products at PerfectSense.org


Click this icon in chart
to view specifications

Item Model No. Description Specs

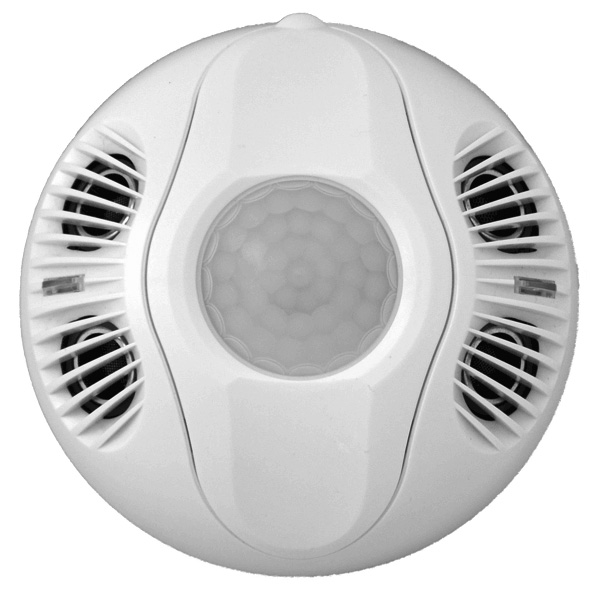

PS-DTC24-R  Dual Tech Ceiling Mount Occupancy Sensor 1000 sq. ft.



The PS-DTC24 increases area lighting energy efficiency quickly and easily by combining leading Passive Infrared (PIR) technology with Ultrasonic technology for superior detection. Factory preset to delivery significant savings out of the box, it has additional modes to increase energy savings if desired. This low-voltage sensor works with the PerfectSense class 2 power pack (PS-PP3000/PS-PP7000) to automatically control lighting.




PS-HBC24-R  HDIR High Bay Ceiling Mount Occupancy Sensor 2000 sq. ft.

The PS-HBC24-R is a low voltage High Bay sensor with integrated High Denition Infrared (HDIR) Sensor designed to work with any PerfectSense power pack, to automatically control lighting in warehouses and other medium and high bay applications. This sensor is meant to be used for major motion applications only (i.e. people walking, forklifts, machinery, etc.) and has a 2000 sq ft detection when mounted at 40 ft. The sensor operates in climates down to -40° Fahrenheit or Celsius. Dual Form C Relays are present on the sensor to allow for integration to NexLight’s 2-wire system and HVAC/BMS Systems. The sensor turns the lights on and keeps them on while occupancy is detected and will turn the lights off after the delayed-off time has expired.


PS-HC24-R  HDIR Ceiling Mount Presence Sensor 1000 sq. ft.

The PS-HC24-R is a low voltage High Definition Infrared (HDIR) Presence Sensor designed to work with any PerfectSense power pack, to automatically control lighting in standard and cold weather applications. This sensor utilizes an industry leading 8-Element Infrared Detector for superior minor motion detection. The sensor operates in climates down to -40°Fahrenheit or Celsius. Dual Form C Relays are present on the sensor to allow for integration to NexLight’s 2-wire system and HVAC/BMS Systems. The sensor turns the lights on and keeps them on while occupancy is detected and will turn the lights off after the delayed-OFF time has expired.


PS-HDTC24-R  HDIR Dual Tech Ceiling Mount Presence Sensor 1000 sq. ft.

The PS-HDTC24-R is a low voltage High Definition Passive Infrared (HDIR) and Ultrasonic (US) Presence Sensor designed to work with any PerfectSense power pack, to automatically control lighting in applications where minor motion is dominant and a dual technology sensor is necessary. Utilizes patented industry best HDIR infrared sensing technology (864 field of view points) that provides superior micro-movement detection. Dual Form C Relays are present on the sensor to allow for integration to NexLight’s 2-wire system and HVAC/BMS Systems. The sensor turns the lights on and keeps them on while occupancy is detected and will turn the lights off after the delayed-OFF time has expired.


PS-P1277-CM  PIR Line Voltage Ceiling Mount Occupancy Sensor 1500 sq. ft.

The PS-P1277-CM 360° passive infrared (PIR) occupancy sensor accurately detects occupancy and automatically switches lighting ON and OFF as needed. With a 360° field of view and up to 1500 sq. ft. of coverage area, the ceiling mount PS-P1277-CM occupancy sensor is ideal for offices, conference rooms, and hallways. The sensor also incorporates an integral light level sensor that will prevent lighting from switching ON when sufficient ambient light is present, commonly found in windowed areas.


PS-P24-CM  PIR Ceiling Mount Sensor 1500 sq. ft.

The PS-P24-CM 360° passive infrared (PIR) occupancy sensor accurately detects occupancy and automatically switches lighting ON and OFF as needed. With a 360° field of view and up to 1500 sq. ft. of coverage area, the ceiling mount PS-P24-CM occupancy sensor is ideal for offices, conference rooms, and hallways. The sensor also incorporates an integral light level sensor that will prevent lighting from switching ON when sufficient ambient light is present, commonly found in windowed areas.


PS-PCL24-R  HDIR Wide View Occupancy Sensor 1000 sq. ft.

The PS-PCL24-R is a low voltage High Definition Infrared Occupancy Sensor designed to work with any PerfectSense power pack, to automatically control lighting in standard and cold weather applications. This sensor utilizes an industry leading 8-element Infrared Detector for superior minor motion detection while combining with a lens that provides major motion detection up to 2000 sq. ft. at a standard 9 ft. mounting height. The sensor operates in climates down to -40° Fahrenheit or Celsius. Dual Form C Relays are present on the sensor to allow for integration to NexLight’s 2-wire system and HVAC/BMS Systems. The sensor turns the lights on and keeps them on while occupancy is detected and will turn the lights off after the delayed-OFF time has expired. There is a daylight sensor built into the sensor to allow for ambient light override functionality.
