Item Model No. Description Specs
PS-CDS2000  Dual Tech Ceiling Mount Sensor

This low profile sensor is ceiling mounted for superior motion detection. With a 360 degree field of view and up to 2000 square feet of coverage area, the ceiling-mounted occupancy sensor is ideal for storage rooms, bathrooms, conference rooms, classrooms, hallways, and open office areas. The sensor readily mounts to drop ceilings and features front located adjustments for setting sensitivity and time delay. Features an isolated relay for use with building automation, security and HVAC systems.

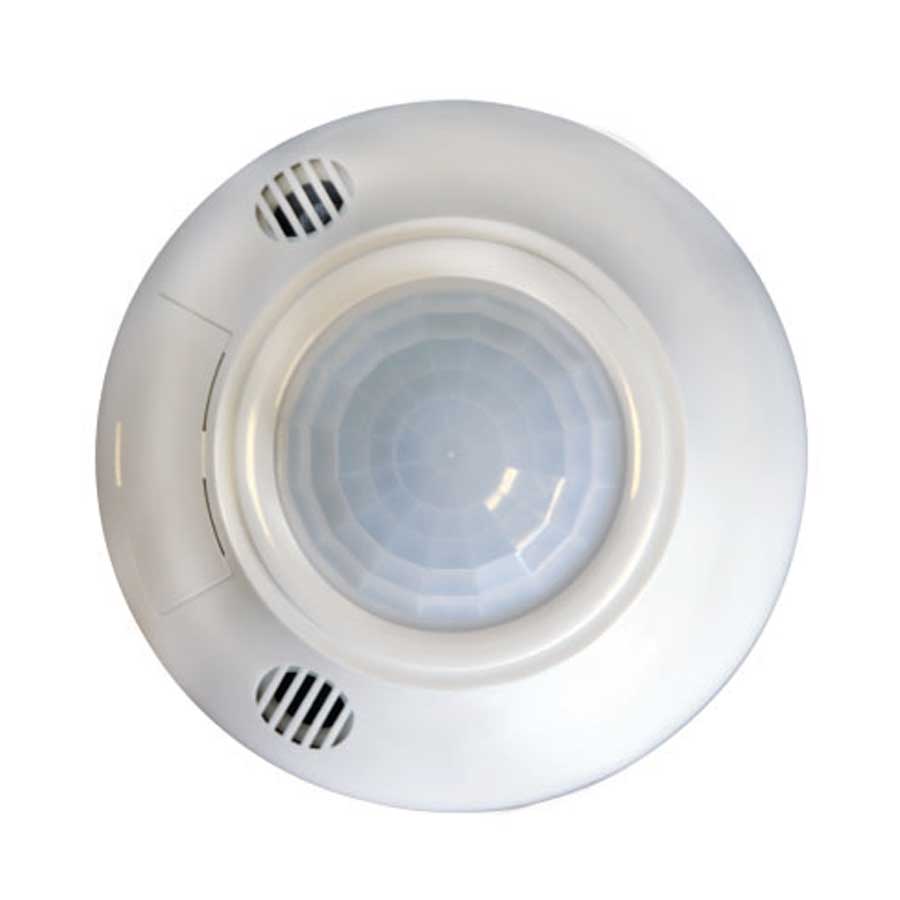

PS-CDS800  180 Degree Dual Tech Ceiling Sensor

The 180 Degree Ceiling-Mounted Occupancy Sensors are ideal for use in business and oce settings to accurately detect occupancy and automatically control lighting. The ceiling-mount design of these low-prole sensors allows the greatest possible motion sensitivity. An adjustment panel is conveniently located on the front of the sensor, providing ready access to setting controls after the sensor is installed.

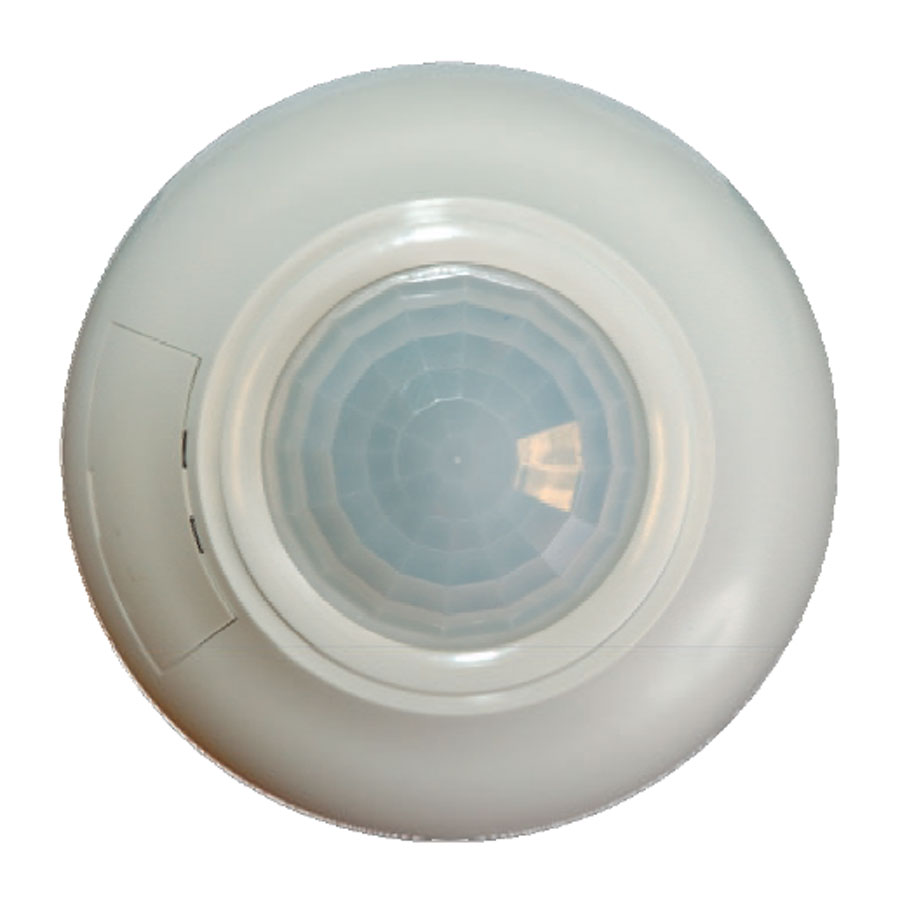

PS-CPS-1000  PIR Ceiling Mount Sensor

This low profile sensor is ceiling mounted for superior motion detection. With a 360 degree field of view and 1000 square foot coverage area. The Ceiling-mounted PIR Occupancy Sensor is ideal for offices, conference rooms and hallways. Ceiling-mount sensors also incorporate an integral light level sensor to prevent lighting from switching On when sufficient ambient light is present, commonly found in windowed areas.

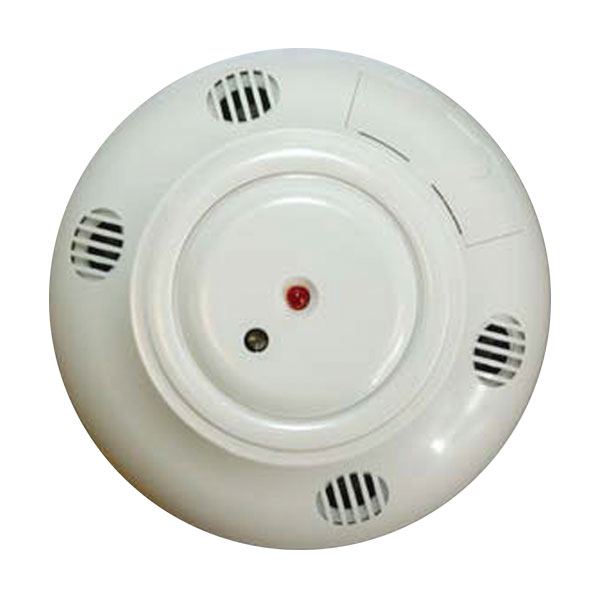

PS-CUS2000  Ultrasonic Ceiling Mount Sensor

The Ceiling-mounted Ultrasonic Occupancy Sensor accurately detects occupancy and automatically switches lighting on and off as needed. This low profile sensor is ceiling mounted for superior motion detection. With a 360 degree eld of view and up to 2000 square feet of coverage area, the Ceiling-mounted Ultrasonic Occupancy Sensor is ideal for storage rooms, bathrooms, conference rooms, classrooms, hallways, and open office areas.

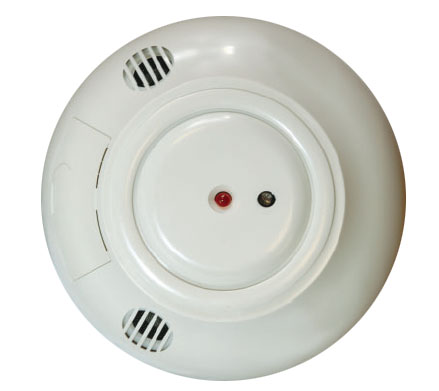

PS-CUS800  180 Degree Ultrasonic Ceiling Sensor



The 180 Degree Ceiling-Mounted Occupancy Sensors are ideal for use in business and office settings to accurately detect occupancy and automatically control lighting. The ceiling-mount design of these low-profile sensors allows the greatest possible motion sensitivity. An adjustment panel is conveniently located on the front of the sensor, providing ready access to setting controls after the sensor is installed.




PS-DTC24  Dual Tech Ceiling Mount Sensor

The PS-DTC24 is a low-voltage sensor with 1000 sq. ft. detection area that works with PerfectSense class-2 power supply like the  PS-PP1277 to automatically control lighting. The sensor turns the lights on and keeps them on when occupancy is detected and will turn the lights off after the delayed-off time has expired. This is the stand alone model, does not include an internal relay.

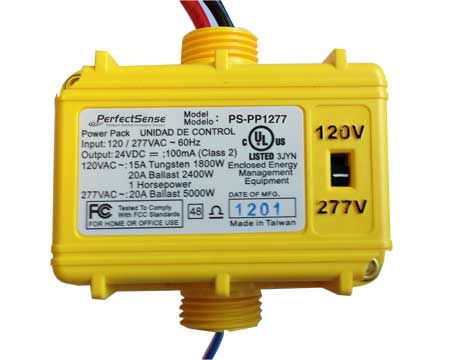

PS-PP1277  Power Pack 20A

The PerfectSense Power Pack has a line input of 120 or 277 Vac, and a single-pole, single-throw, relay output for the load. A full wave rectier converts the AC line voltage to 24 Vdc to power a low-voltage sensor via Class 2, plenum-rated wire. The power pack can be mounted inside or outside of an electrical junction box. Be sure to observe all local codes when mounting and wiring a powerpack.

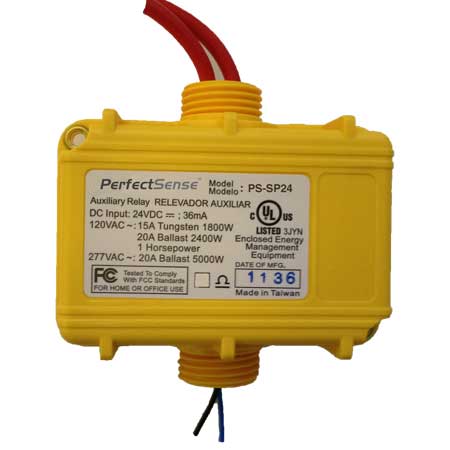

PS-SP24  Auxiliary Relay Power Pack

The PerfectSense auxiliary relay is similar to the power pack. The auxiliary relay does not supply power, but switches lighting and HVAC loads based on a control signal from the occupancy sensor. Both the power pack and auxiliary relay are housed in a rugged plenum rated enclosure, and rated for lighting and HVAC loads, including electronic ballasts. Flexible mounting scheme allows for installation inside or outside a standard 4”x4”junction box.

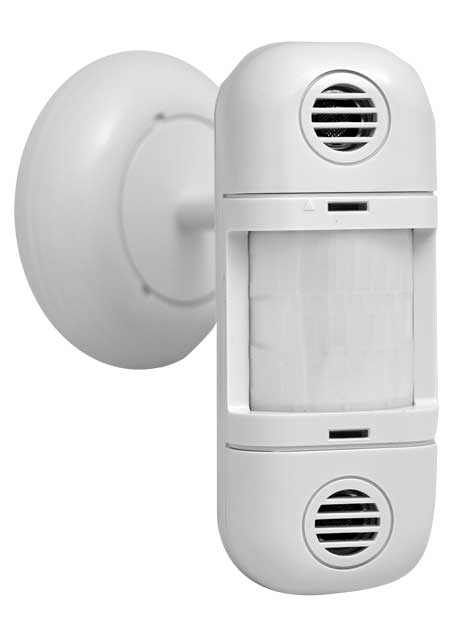

PS-WDS1500  Dual Tech Wall Mount Commercial Grade Occupancy Sensor



The Wall-Mounted Dual Technology Occupancy Sensor employs both passive infrared (PIR) and ultrasonic technology to accurately detect occupancy and automatically turn on lighting. The low profile sensor is wall-mounted for greatest sensitivity to motion in large areas with obstructions. With a 110º degree field of view and up to 2500 square feet of coverage area when mounted at 8 ft. off the ground, the Wall-mounted Dual Technology Occupancy Sensor is ideal for conference rooms, classrooms, bathrooms, and large oce areas.

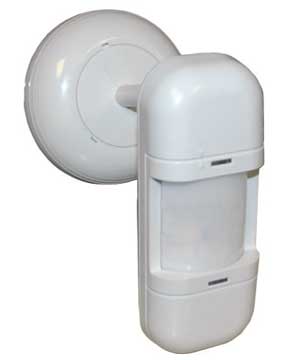

PS-WPS1500  PIR Wall Mount Commercial Grade Occupancy Sensor

Wall-Mounted Passive Infrared (PIR) Occupancy Sensor accurately detects occupancy and automatically switches lighting on and o as needed. This sensor is wall- or ceiling-mounted for superior motion detection. The PIR Occupancy Sensor has three included interchangeable lenses for custom coverage patterns.




PS-WUS1500  Ultrasonic Wall Mount Commercial Grade Occupancy Sensor

Wall-mounted Ultrasonic Occupancy Sensor accurately detects occupancy and automatically switches lighting on and o as needed. This low prole sensor is wall- or ceiling- mounted for superior motion detection over partitions and other common obstructions. With 1000 square feet of coverage area, the Wall Mounted Ultrasonic Occupancy Sensor is ideal for storage rooms, hallways, bathrooms, conference rooms, classrooms and open office areas.
