R Series

The NexLightTM R Series relay control panel provides ON/OFF control of lighting and/or receptacle loads using world class 20A mechanically latching relays. These lighting control panels come in a NEMA/Type 1 enclosure and are factory wired in NexLight's UL508A shop. NexLight panel mounted system components are controlled via a dual processor CPU with an astronomical timeclock function. The easy-to-use Graphic User Interface (GUI) may be accessed through a Personal Computer (PC) for real-time programming, monitoring, and override of controlled loads on the NexLight system. The scheduling function is also accessed through the GUI and provides the end user with full control of the system whether on-site or from a remote location. Networking multiple panels together using the global addressing feature provides seamless control from a single platform.

Products (R Series ):

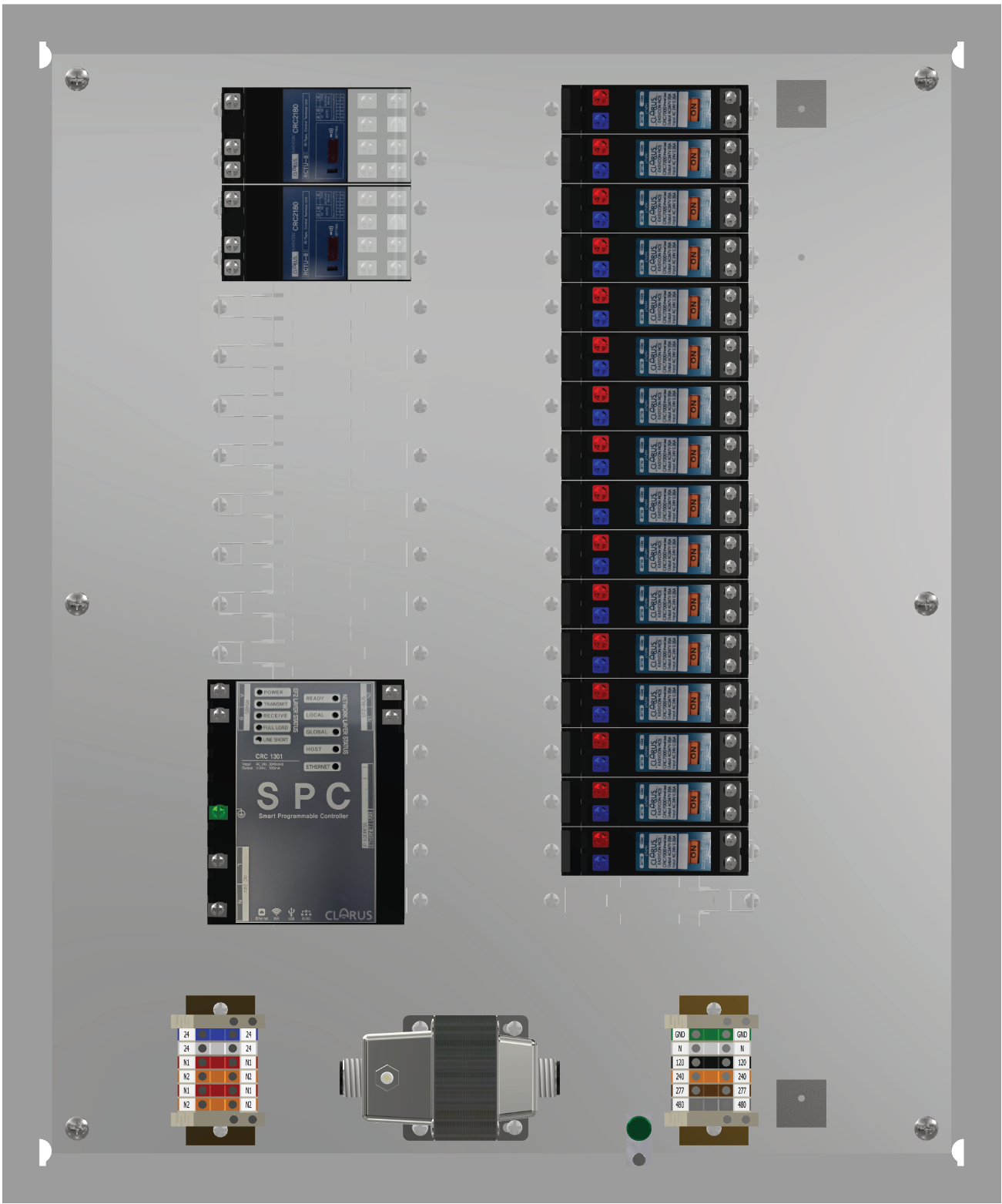

R Series Lighting Control Panel (16 Zone ON/OFF)
View
NXL-R16s

R Series Lighting Control Panel (16 Zone ON/OFF)

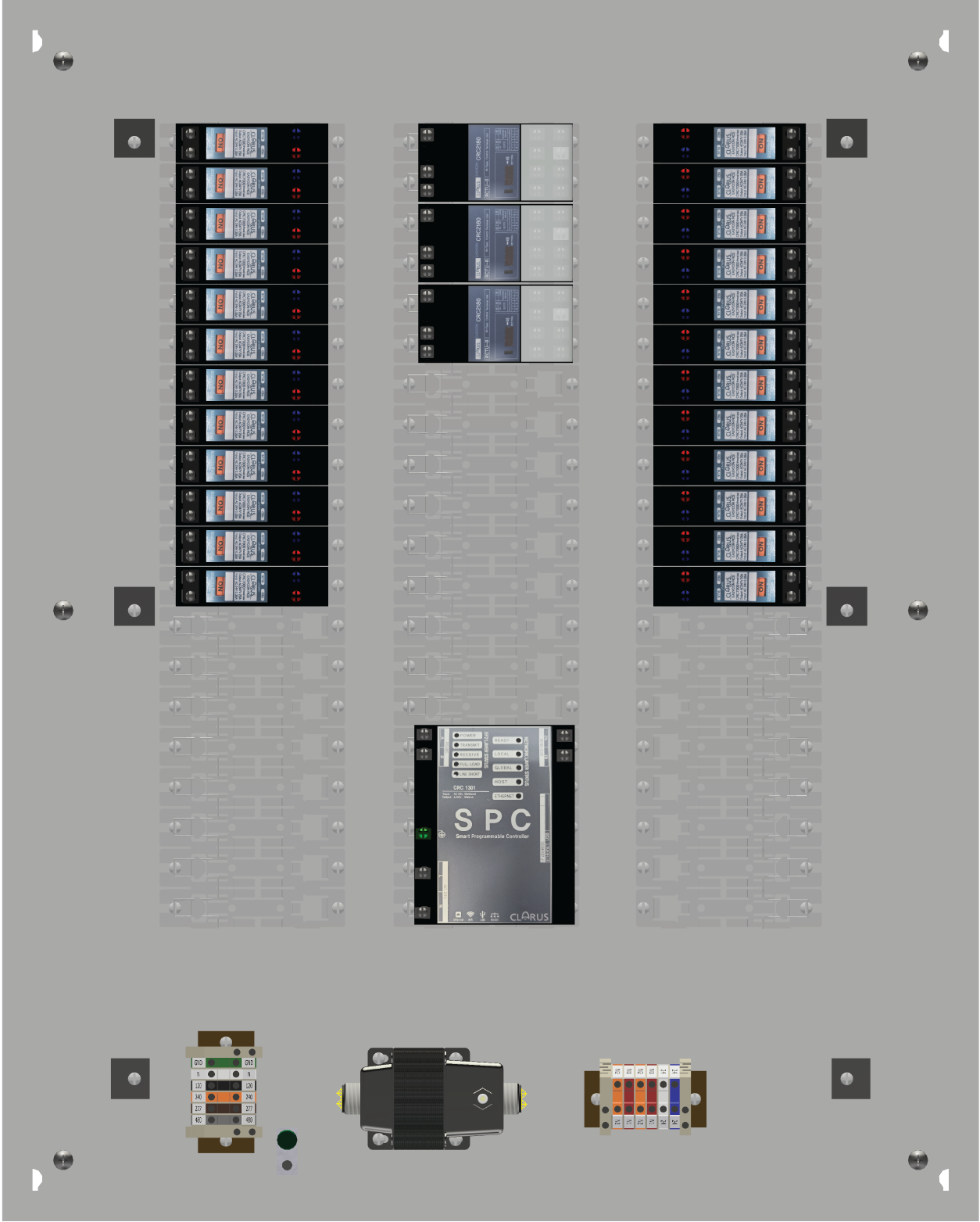

R Series Lighting Control Panel (24 Zone ON/OFF)
View
NXL-R24s

R Series Lighting Control Panel (24 Zone ON/OFF)

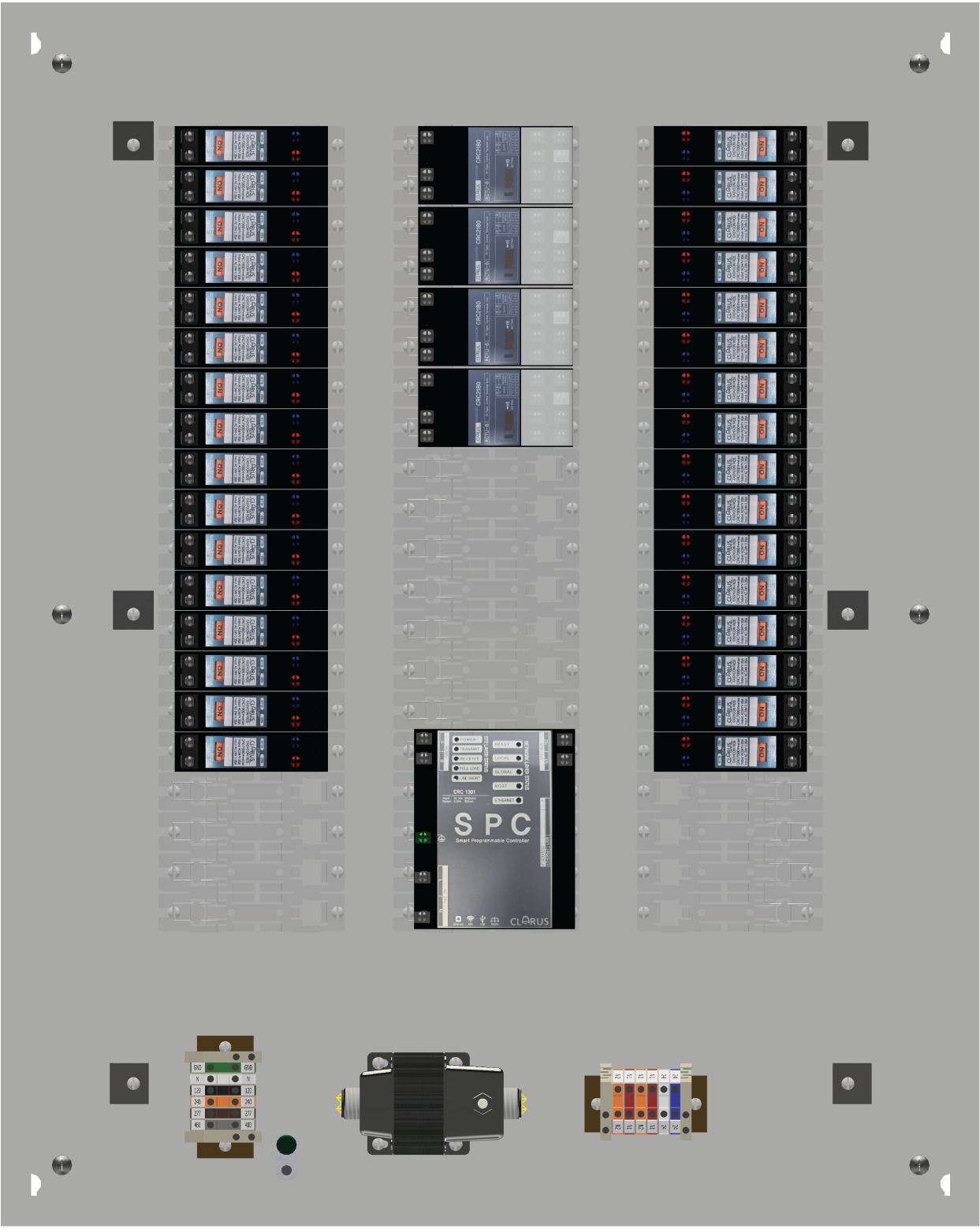

R Series Lighting Control Panel (32 Zone ON/OFF)
View
NXL-R32s

R Series Lighting Control Panel (32 Zone ON/OFF)

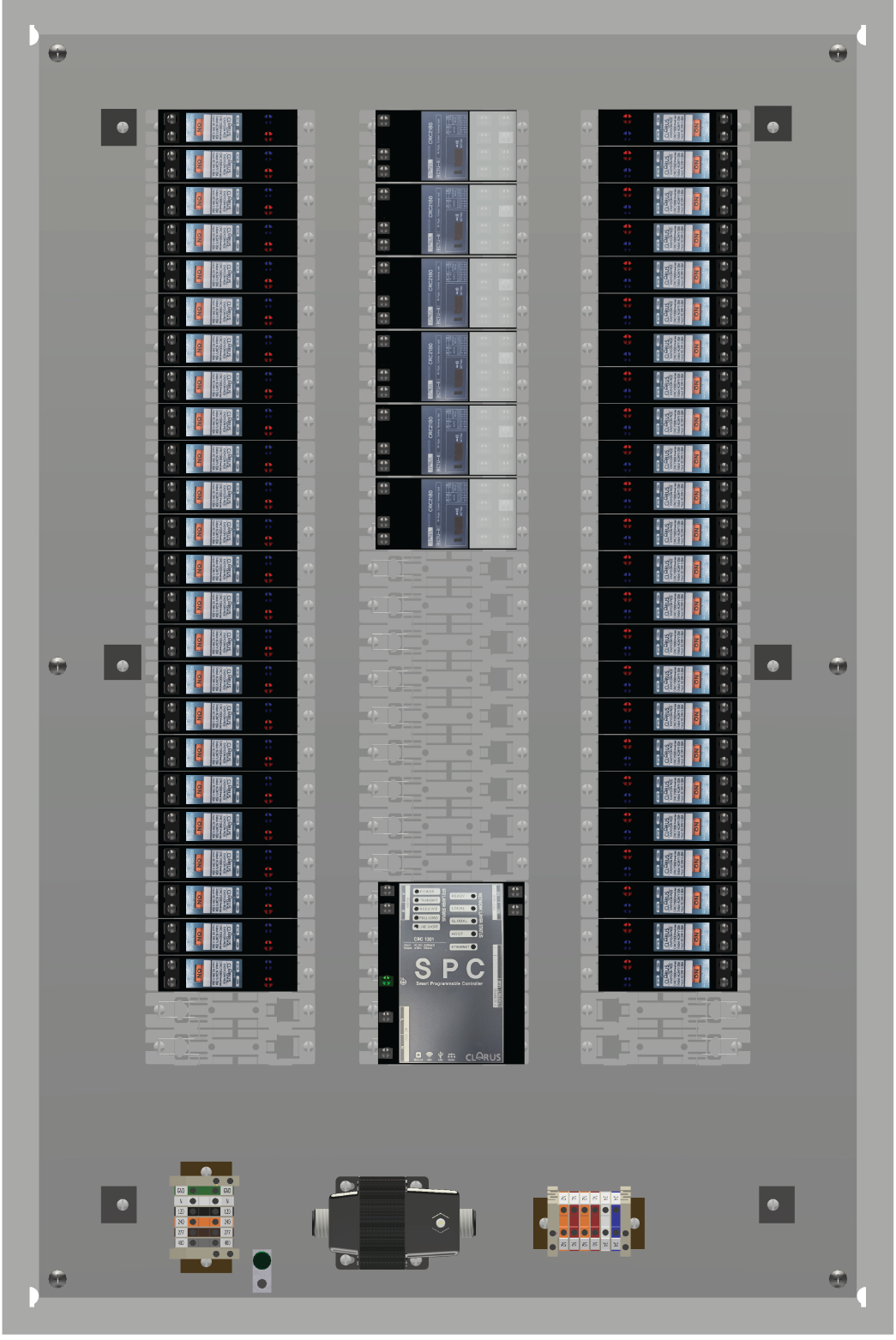

R Series Lighting Control Panel (48 Zone ON/OFF)
View
NXL-R48s

R Series Lighting Control Panel (48 Zone ON/OFF)

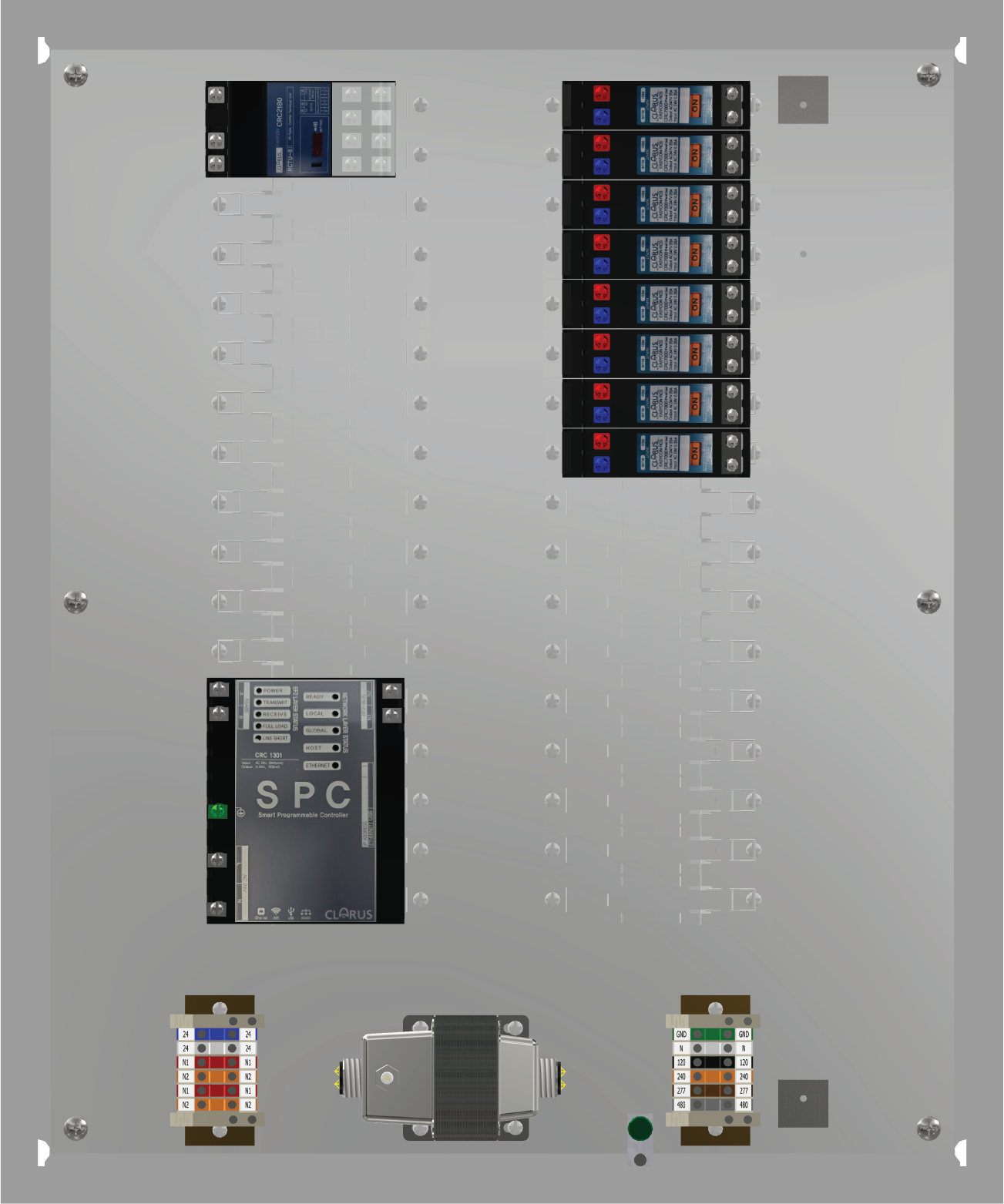

R Series Lighting Control Panel (8 Zone ON/OFF)
View
NXL-R8s

R Series Lighting Control Panel (8 Zone ON/OFF)
