Panel Assemblies

The NexLight series of enclosures are used in the NexLight Lighting Control System to house NexLight panel mounted devices such as relays, dimmers, system devices, and contact inputs. NexLight's standard series of panels are type 1 panels, but all Nema types are available.



Contact NexLight for any custom panel requirements. In the past NexLight has delivered panels with custom panel size and type requirements, custom barrier requirements, different color options, panels with contactor configurations, panels with both the lighting control and load center in one, and many other configurations. If you require it, let NexLight build it.

Products (Panel Assemblies):

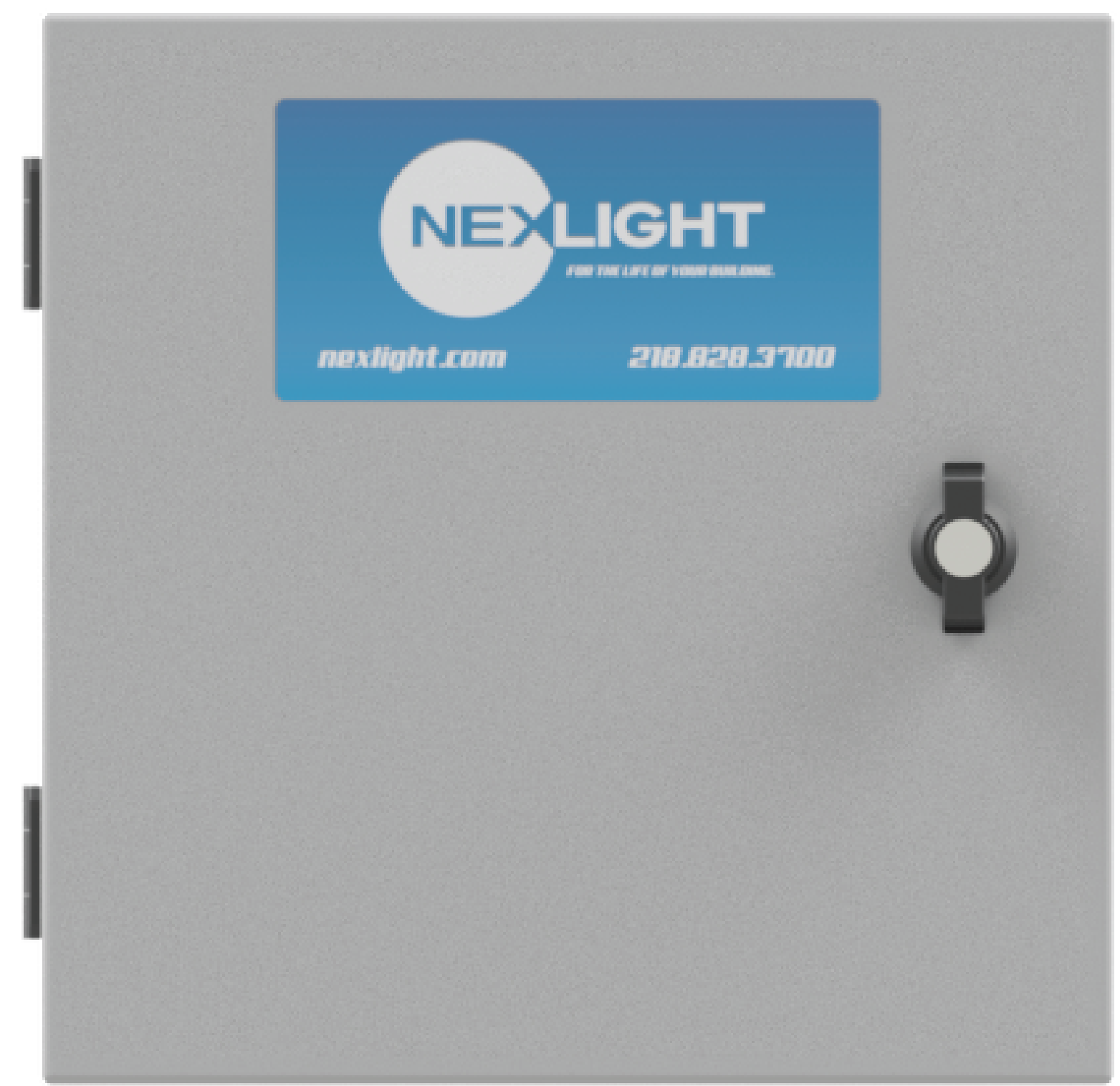

PA-120-1 Panel Assembly
View
PA-120-1

PA-120-1 Panel Assembly

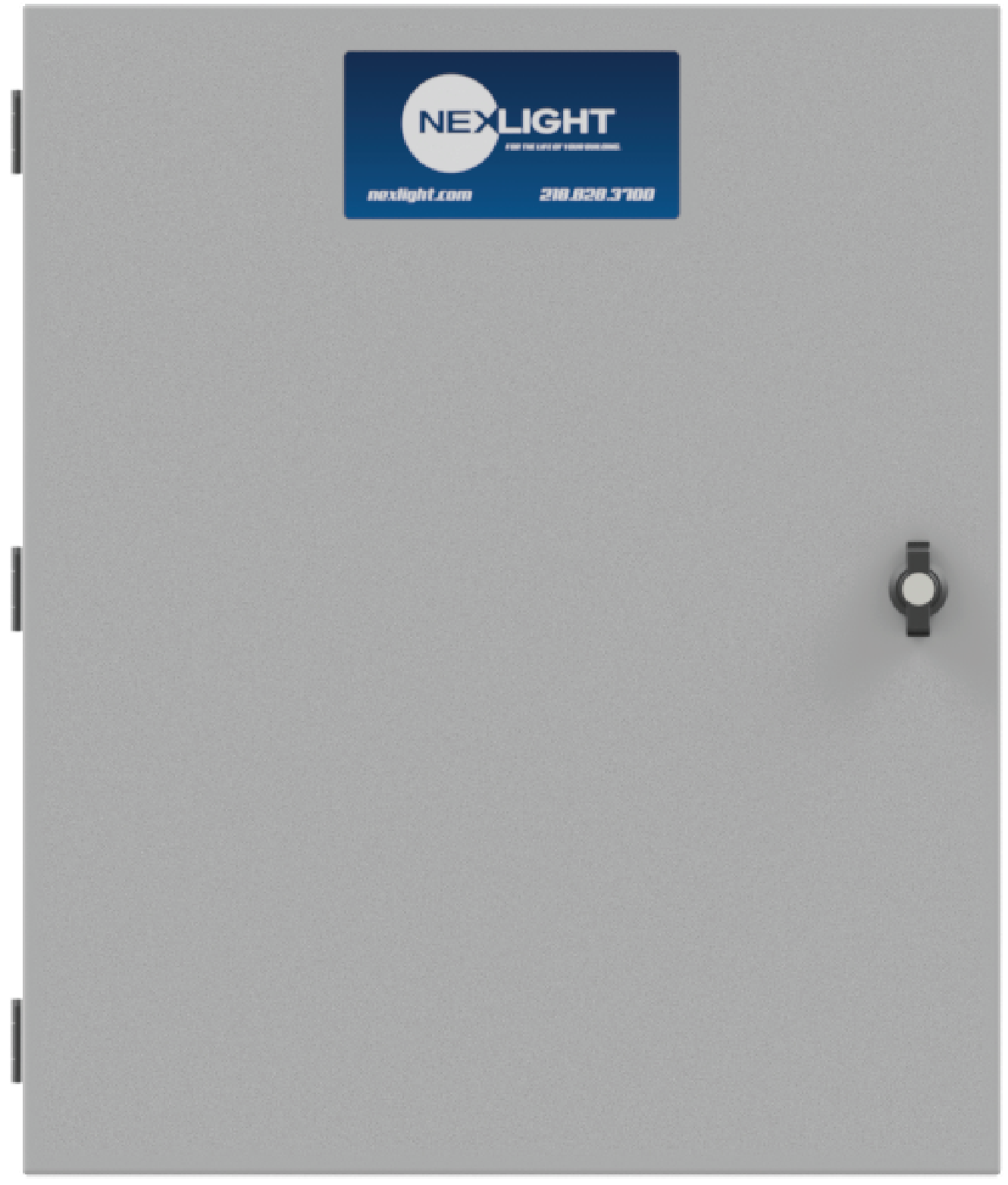

PA-240-1 Panel Assembly
View
PA-240-1

PA-240-1 Panel Assembly

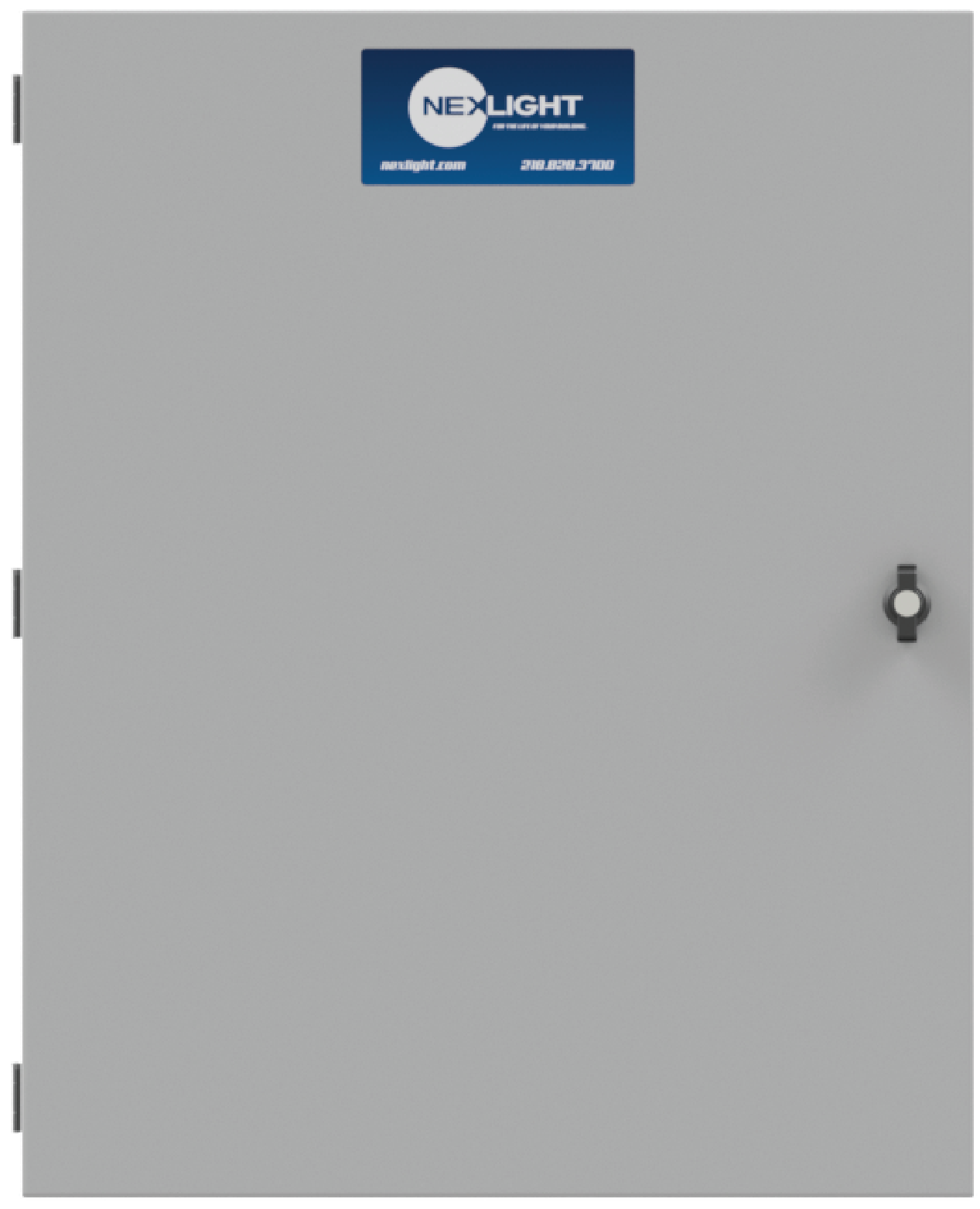

PA-300-1 Panel Assembly
View
PA-300-1

PA-300-1 Panel Assembly

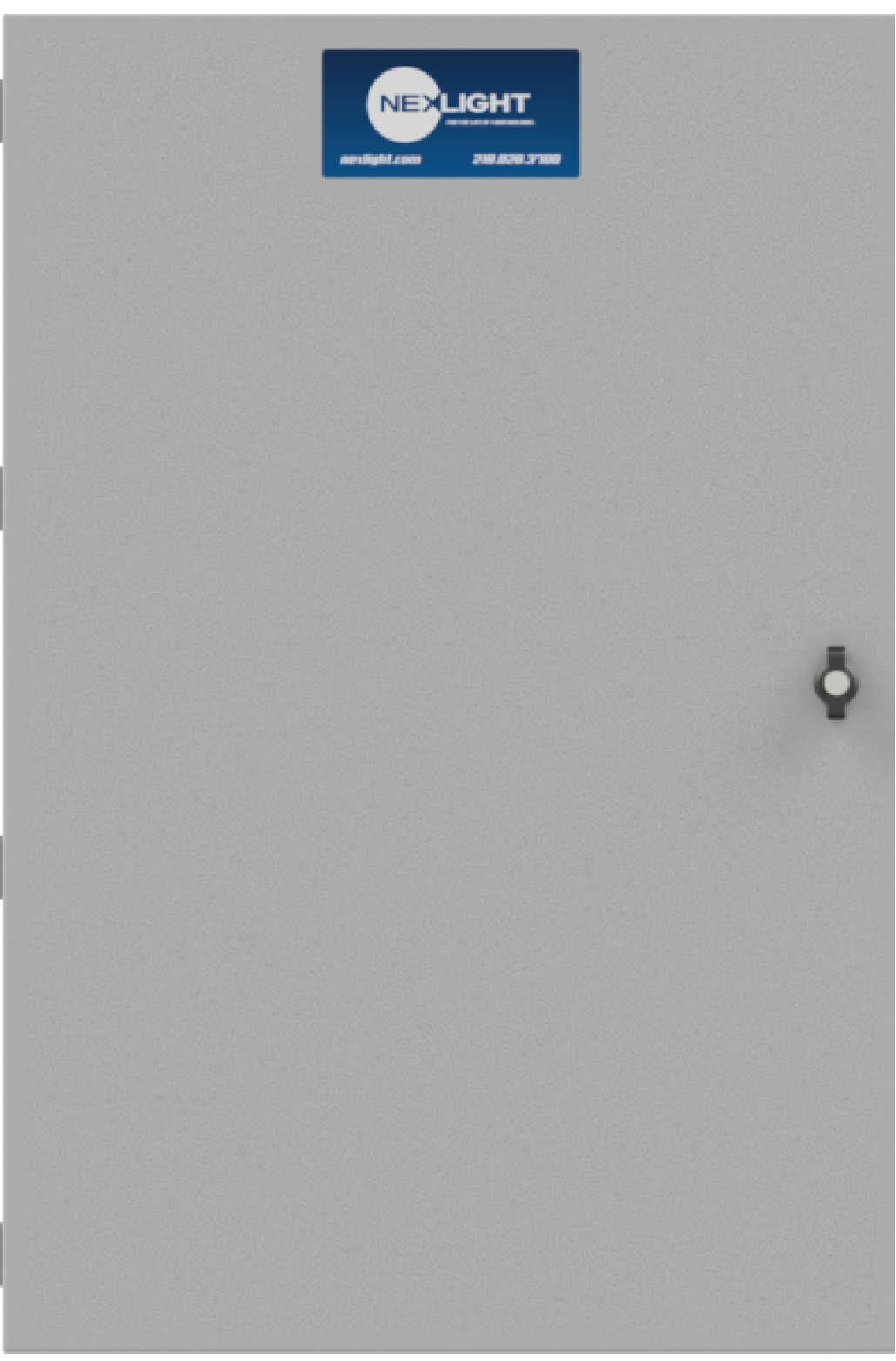

PA-360-1 Panel Assembly
View
PA-360-1

PA-360-1 Panel Assembly

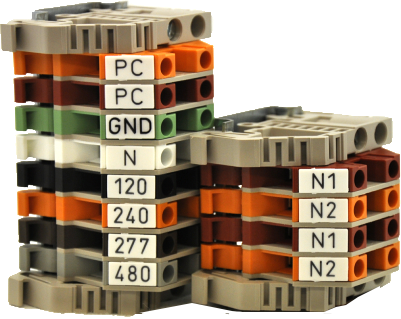

Terminal Block Assembly
View
TB2-4-8

Terminal Block Assembly

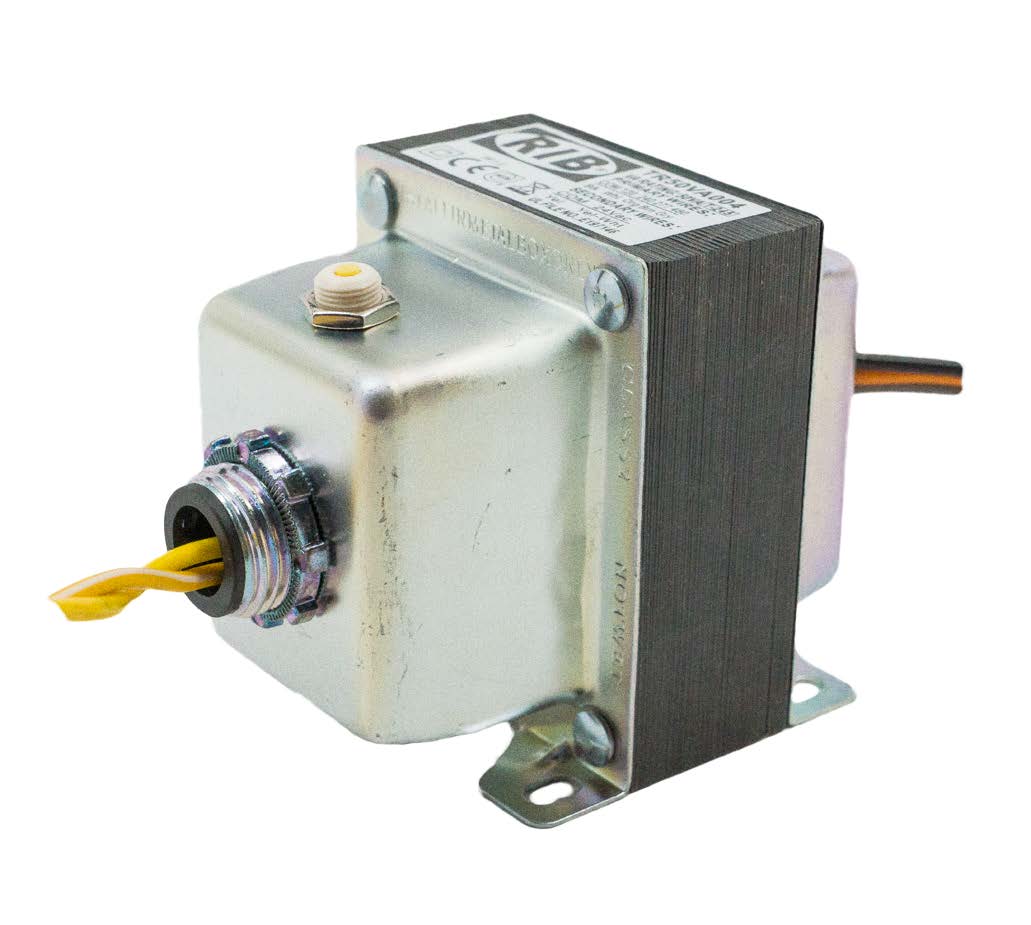

Panel Mount Multi-Tap Transformer
View
TR50VA004

Panel Mount Multi-Tap Transformer
